• Stainless steel construction for durability
• Two FS-Plus spray-type outlet heads
• 10" diameter stainless steel shower head
• 1" IPS Type 316 stainless steel stay-open valve
• 11 1/2" diameter stainless steel eye/face wash bowl
• High visibility with orange polyethylene pipe covers
• ANSI-compliant identification sign included
• Factory tested quality assurance

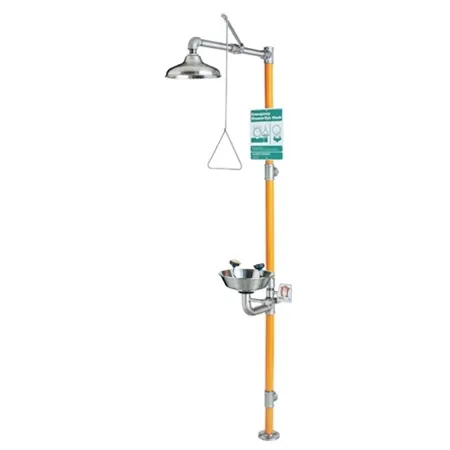

APPLICATION: All-stainless steel combination eye/face wash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and clean room applications. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.

SHOWER HEAD: 10" diameter stainless steel.

SHOWER VALVE: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.

SPRAY HEAD ASSEMBLY: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.

EYE/FACE WASH BOWL: 11 1/2" diameter stainless steel.

EYE/FACE WASH VALVE: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and Teflon seals.

PIPE AND FITTINGS: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.

SUPPLY: 1 1/4" NPT female top or side inlet.

WASTE: 1 1/4" NPT female outlet.

SIGN: Furnished with ANSI-compliant identification sign.

QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
