Product Details
＋
- Combination eyewash and shower safety station
- 10" orange ABS plastic shower head, 20 GPM flow
- ANSI-compliant identification sign included

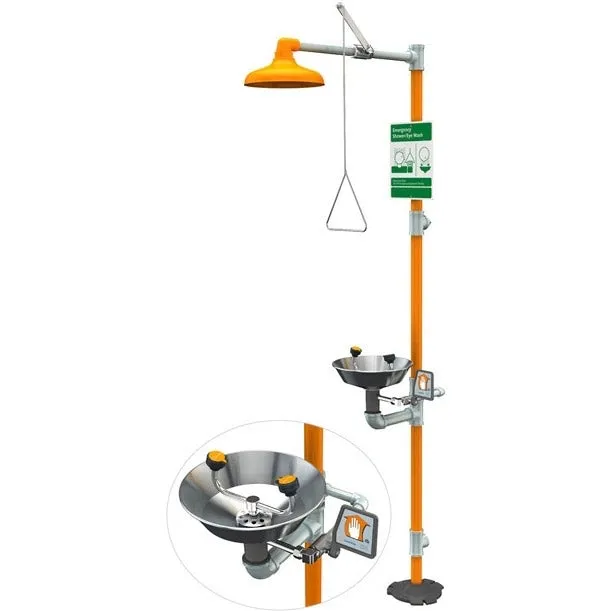

The Guardian G1902 offers the convenience of an eyewash and a drench shower in one convenient freestanding solution for your commercial setting. With the unit, you can provide complete protection for your employees while using only a minimal amount of space. The combination unit features an 11-1/2-inch stainless steel bowl and has a pair of GS-Plus sprayheads. To protect the sprayheads from debris, the sprayheads have flip-top plastic covers. Integral flow control in the sprayheads helps to conserve water. Measuring 10 inches in diameter, the drench shower head is crafted from orange ABS plastic. The pipes in the unit are made of schedule 40 galvanized steel finished with corrosion-resistant orange polyethylene coverings. The eyewash valve is a chrome-plated brass stay open ball valve with teflon seals. The shower valve is a chrome-plated brass stay open ball valve and uses a 29-inch stainless steel pull rod for activation. An ANSI-compliant identification sign comes with the unit.
APPLICATION: Combination eyewash and shower safety station. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.

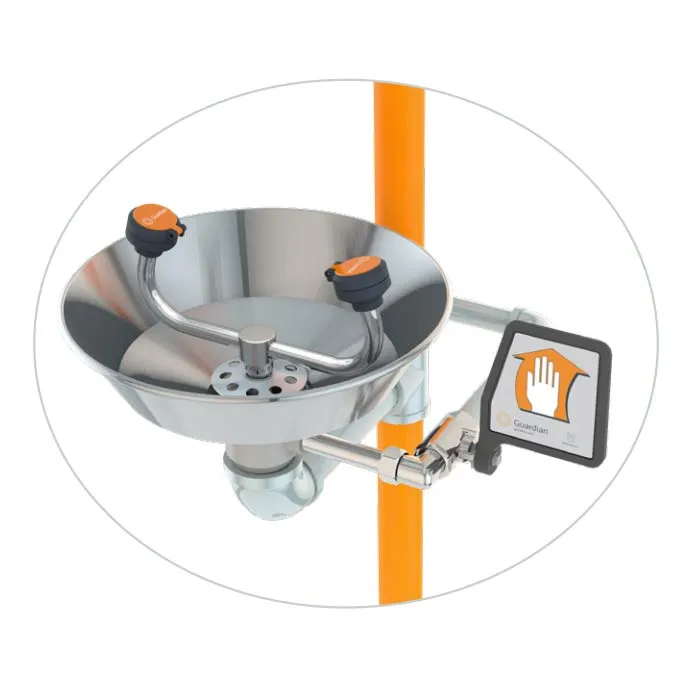

SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYE/FACE WASH BOWL: 11 1/2" stainless steel.
EYE/FACE WASH VALVE:1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
Includes: Flip Top Dust Covers, High Visibilty Identification Sign, Orange Covers For Vertical Piping And Inspection Tag
SHOWER HEAD: 10" diameter orange ABS plastic.
SHOWER VALVE: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
SPRAY HEAD ASSEMBLY: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water.
EYE/FACE WASH BOWL: 11 1/2" stainless steel.
EYE/FACE WASH VALVE:1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance.
SUPPLY: 1 1/4" NPT female top or side inlet.
WASTE: 1 1/4" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples.
SIGN: Furnished with ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
Includes: Flip Top Dust Covers, High Visibilty Identification Sign, Orange Covers For Vertical Piping And Inspection Tag
